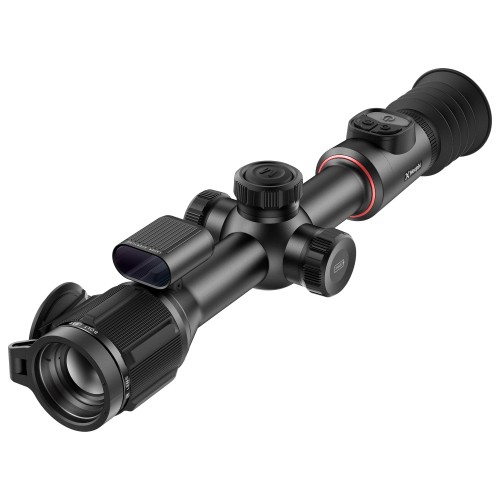

Introducing the NocPix Bolt L35R — a cutting-edge thermal riflescope designed for professionals who demand exceptional clarity, accuracy, and reliability in the most challenging conditions.

Precision Thermal Performance

With 3.5x to 14x variable magnification the Bolt L35R thermal scope features a self-developed thermal sensor with a NETD of <20mK and a 50Hz refresh rate, delivering smooth, high-quality imaging with superb detail and contrast — even in adverse environments.

With 3.5x to 14x variable magnification,

Integrated 1200m Laser Rangefinder

The built-in laser rangefinder supports both single and continuous measurement modes, enabling fast and precise distance readings. Combined with comprehensive ballistic calculations, it ensures every shot is aligned for maximum accuracy and effectiveness.

Advanced 384x288 Thermal Sensor

The high-resolution thermal core offers excellent image clarity and target definition at extended distances. Its ultra-sensitive sensor detects even subtle temperature differences, enhancing target identification in both day and night scenarios.

High-Definition AMOLED Display

A crisp, high-contrast AMOLED screen provides a sharp and vivid viewing experience. This level of clarity supports faster target acquisition and improved situational awareness in the field.

35mm Germanium Lens with Manual Focus

The 35mm f/1.0 Germanium lens strikes the ideal balance between field of view and detection range. Manual focus allows users to dial in image sharpness, while premium optics deliver outstanding thermal transmission.

Ergonomic and Tactical Design

Styled after traditional daytime scopes, the Bolt L35R offers a familiar, intuitive user interface for professionals transitioning to thermal. Its rugged, IP67-rated construction ensures full protection against dust, rain, and immersion.

Recoil-Resistant and Multi-Calibre Compatible

Engineered to handle powerful platforms, the Bolt L35R is recoil-rated up to .375 H&H — making it a dependable choice across a wide range of calibres and shooting applications.

Core Specifications:

Thermal Sensor: 384x288 resolution, 12µm pixel pitch

Sensor Sensitivity (NETD): ≤ 20mK

Frame Rate: 50Hz for smooth image rendering

Optical Features

Objective Lens: 35mm f/1.0 Germanium lens

Magnification:

Base: Approx. 3.5x

Digital Zoom: 1x / 2x / 4x / 8x

Field of View (H×V): ~12.5° x 10.0°

Focus: Manual focus adjustment for precise clarity

Laser Rangefinder (LRF) integrated: Yes

Range: Up to 1000 metres

Accuracy: ±1 metre

Display & Output

Display Type: High-contrast AMOLED

Display Resolution: 1024x768

Picture-in-Picture (PIP): Yes

Reticle Options: Multiple, with colour and pattern selection

Zeroing Profiles: Multiple rifle profiles supported

Imaging Modes

Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, and others

Image Enhancement: Dynamic image sharpening, noise reduction

Hot Spot Tracking: Yes (target heat signature locking)

Recording & Connectivity

Video Recording: Onboard photo and video with sound

Memory: Built-in storage (exact capacity TBC)

WiFi Streaming: Supported, compatible with mobile app

USB-C Port: For data transfer and charging

Power & Performance

Battery Type: Rechargeable Li-ion battery pack

Runtime: Up to 8 hours continuous use (depending on mode)

External Power: USB power bank compatible

Durability & Mounting

Housing Material: Aluminium alloy chassis with polymer external shell

Waterproof Rating: IP67 (dustproof, waterproof, submersible to 1m)

Recoil Resistance: Up to .375 H&H / 12-gauge

Operating Temperature: -20°C to +50°C

Mounting System: 30mm ring mount compatible

Dimensions & Weight

Length: Approx. 330mm

Weight: Approx. 950g (without mount)

In the Box

NocPix Bolt L35R Thermal Riflescope

Battery Pack and Charger

30mm Mounting Rings

Carry Case

Lens Cleaning Cloth

Instruction Manual
